When it comes to industrial applications that demand high strength, excellent corrosion resistance, and durability, Duplex 2205 Round Bar is one of the most preferred materials. This grade is a type of duplex stainless steel that offers the best of both worlds — the strength of ferritic steel and the corrosion resistance of austenitic steel.

In this guide, we'll cover everything about Duplex 2205 Round Bar, from its chemical composition and properties to applications, benefits, and maintenance tips. Whether you're a professional engineer, a procurement manager, or someone simply looking to understand more about this material, this article will give you all the details in a clear and easy-to-digest way.

What is Duplex 2205 Stainless Steel?

Duplex stainless steels are named for their dual-phase microstructure, consisting of approximately 50% austenite and 50% ferrite. This unique combination makes them stronger than austenitic stainless steels like 304 and 316, while also offering better corrosion resistance than ferritic stainless steels.

Duplex 2205 is the most widely used grade in this category. Its microstructure provides excellent mechanical strength and resistance to stress corrosion cracking, making it ideal for harsh environments.

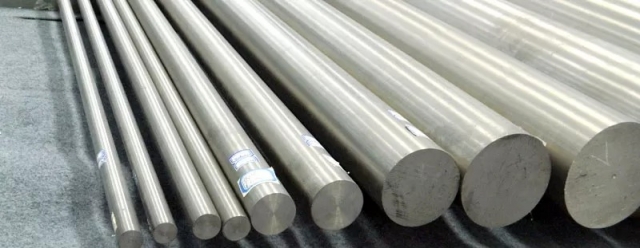

What is Duplex 2205 Round Bar?

A Duplex 2205 Round Bar is simply a cylindrical rod made from Duplex 2205 stainless steel. These bars are manufactured in various diameters and lengths to suit industrial needs. They are produced through processes like hot rolling, cold drawing, or forging, and are later heat-treated to enhance their properties.

They are commonly used in industries such as oil & gas, chemical processing, marine engineering, construction, and pulp & paper due to their combination of strength, corrosion resistance, and cost-effectiveness.

Chemical Composition of Duplex 2205 Round Bar

The exceptional properties of Duplex 2205 Round Bar come from its carefully balanced chemical composition:

Element Percentage (%)
Chromium (Cr) 22.0 – 23.0
Nickel (Ni) 4.5 – 6.5
Molybdenum (Mo) 3.0 – 3.5
Manganese (Mn) ≤ 2.0
Silicon (Si) ≤ 1.0
Nitrogen (N) 0.14 – 0.20
Carbon (C) ≤ 0.03
Iron (Fe) Balance


Key Takeaway:

The high chromium and molybdenum content improves pitting and crevice corrosion resistance, while nitrogen enhances strength and further resists corrosion.

Mechanical Properties of Duplex 2205 Round Bar

Duplex 2205 Round Bars stand out due to their impressive mechanical characteristics:

Property Value
Tensile Strength ≥ 620 MPa
Yield Strength ≥ 450 MPa
Elongation 25% (minimum)
Hardness (Brinell) ≤ 290 HB
Impact Energy High, even at sub-zero temperatures


Why This Matters:

These values mean the material can withstand high loads, stress, and harsh environmental conditions without deforming or failing.

Key Features & Advantages

Choosing a Duplex 2205 Round Bar offers several advantages:

  1. High Strength: Nearly twice as strong as austenitic stainless steels like 316.

  2. Excellent Corrosion Resistance: Resists pitting, crevice corrosion, and stress corrosion cracking, especially in chloride-rich environments.

  3. Cost-Effective: Due to its high strength, you may use thinner sections without compromising performance, reducing material costs.

  4. Good Weldability: Can be welded using standard techniques, although some precautions are needed.

  5. Fatigue Resistance: Performs well in applications with repeated stress or load cycles.

  6. Temperature Tolerance: Can be used in both sub-zero and elevated temperature conditions.

Applications of Duplex 2205 Round Bar

Because of its unique combination of strength and corrosion resistance, Duplex 2205 Round Bar is used across multiple industries:

1. Oil & Gas Industry

  • Offshore platforms

  • Subsea equipment

  • Pipelines and risers

    Reason: High chloride resistance is crucial in seawater environments.

2. Chemical Processing

  • Heat exchangers

  • Pressure vessels

  • Storage tanks

    Reason: Resistant to acidic and alkaline chemicals.

3. Marine Engineering

  • Boat shafts

  • Propeller systems

  • Seawater cooling systems

4. Construction & Infrastructure

  • Bridges

  • Structural supports

  • Reinforcement bars for harsh environments

5. Pulp & Paper Industry

  • Digesters

  • Bleaching equipment

Duplex 2205 Round Bar vs. Austenitic Stainless Steels

Feature Duplex 2205 Austenitic (304/316)
Strength Higher Lower
Corrosion Resistance Better in chloride-rich environments Good but less effective in chlorides
Cost Slightly higher initial cost but more cost-effective long-term Lower initial cost but higher maintenance
Weight Reduction Possible due to higher strength Limited


Conclusion

From chemical composition and mechanical properties to applications and benefits, it's clear why Duplex 2205 Round Bar is such a popular choice across industries. Whether in offshore oil rigs, chemical plants, or marine engineering projects, its performance stands unmatched.

By investing in Duplex 2205 Round Bar, you're not just buying a material — you're securing reliability, longevity, and cost efficiency for years to come.
